Product Description:

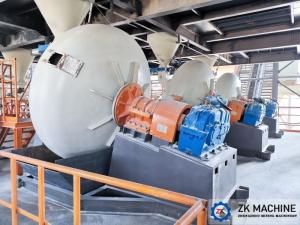

The pan type granulator is one equipment make pellet use bauxite, shale, clay, sludge, fly ash, slag and so on as raw materials, it has features such as granulate uniform, high capacity, compact structure, control easy, running steady and so on, it can be widely used for construction, refractory & insulation, oil fracturing proppant industries and so on.
The base of granulator is designed integration, operation steady, low nosie, low fault, high efficiency, long life time, high granulation rate, granulation form, easy control and high strength.
Features:
1. High ball formation rate, uniform particle size and high strength of finished pellets;
2. The frequency conversion motor is adopted, which is convenient to adjust the speed according to the needs of the process;
3. The base of the granulator adopts an integrated structure design, with stable operation and low noise;
4. Low failure, high production efficiency and long service life;
Technical Parameters:
| Model(mm) |
Volume(m³) |
Capacity(t/h) |
Rotation speed(r/min) |
Power(kW) |
Weight(t) |
| ZKL22 |
2 |
1-2 |
24 |
15 |
3.9 |
| ZKL24 |
3 |
2-3 |
20 |
22 |
5.2 |
| ZKL30 |
7 |
5-6 |
18 |
45 |
12.1 |
| ZKL32 |
10 |
6-8 |
16 |
55 |
14.5 |
| ZKL35 |
13 |
8-10 |
16 |
75 |
17.5 |
| ZKL36 |
14 |
10-12 |
16 |
75 |
19.6 |
| ZKL40 |
18 |
11-14 |
14 |
110 |
23.8 |
| ZKL42 |
22 |
14-18 |
14 |
132 |
29.4 |
Applications:
The ZKL Granulator Machine is perfect for a wide range of industries and applications. For instance, it is ideal for use in bauxite, shale, clay, fly ash, slag, sludge, iron oxide, phosphate ore granulation.
Customization:
1. The diameter of pans ranges from 2.2m to 4.2m, and there are 8 models in total.
2. The company's pot granulator has low energy consumption, easy to control the size of the ball size, and good strength.
3. Application areas: used in petrochemical, construction, refractory insulation and other fields
